看雪论坛作者ID:小黄鸭爱学习
一
前言
二
资料搜索阅读
三

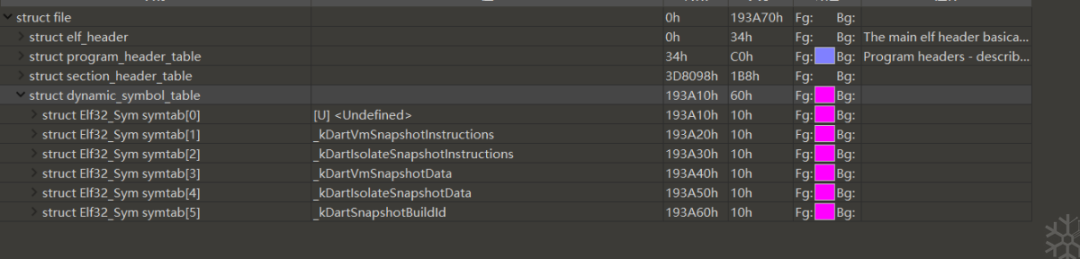

静态分析ELF
-
_kDartVmSnapshotInstructions -
_kDartIsolateSnapshotInstructions -
_kDartVmSnapshotData -
_kDartIsolateSnapshotData -
_kDartSnapshotBuildId
四
读取并组装回去
一个非常不幸的消息是 发布版的快照文件里面没有能够直接调用的dart语言写的方法。这就说明不存在使用IDA直接F5或者使用fridah ook调用dart层方法测试这种情况。
所以拿着这个找了半天。但是没有结果。
FlutterTest>dart --version
Dart SDK version: 2.14.4 (stable) (Wed Oct 13 11:11:32 2021 +0200) on "windows_x64"
五

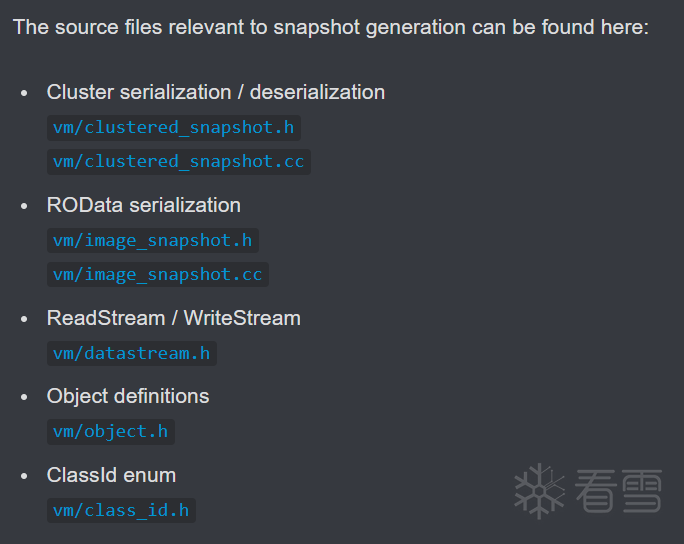

dart SDK 源码阅读
static const int32_t kMagicValue = 0xdcdcf5f5;
static const intptr_t kMagicOffset = 0;
static const intptr_t kMagicSize = sizeof(int32_t);
static const intptr_t kLengthOffset = kMagicOffset + kMagicSize; //0+32
static const intptr_t kLengthSize = sizeof(int64_t);
static const intptr_t kKindOffset = kLengthOffset + kLengthSize;//0+32+64
static const intptr_t kKindSize = sizeof(int64_t);
static const intptr_t kHeaderSize = kKindOffset + kKindSize;//0+32+64+64 = 160
enum Kind {
kFull, // Full snapshot of an application.
kFullCore, // Full snapshot of core libraries. Agnostic to null safety.
kFullJIT, // Full + JIT code
kFullAOT, // Full + AOT code
kNone, // gen_snapshot
kInvalid
};
snapshot_stream = BytesIO(snapshot)
snapshot_stream.seek(0)
kMagicValue = snapshot_stream.read(4).hex()
kLengthValue = snapshot_stream.read(8).hex()
kKindValue = snapshot_stream.read(8).hex()
print(kMagicValue)
print(kLengthValue)
print(kKindValue)
f5f5dcdc
fed20b0000000000
0300000000000000
03 kind 对应 AOT快照
fed20b 应该是镜像的大小
SnapshotHeaderReader(snapshot->kind(),
snapshot->Addr(),
snapshot->length())
const char* expected_features = Dart::FeaturesString(isolate_group, (isolate_group == NULL), kind_);

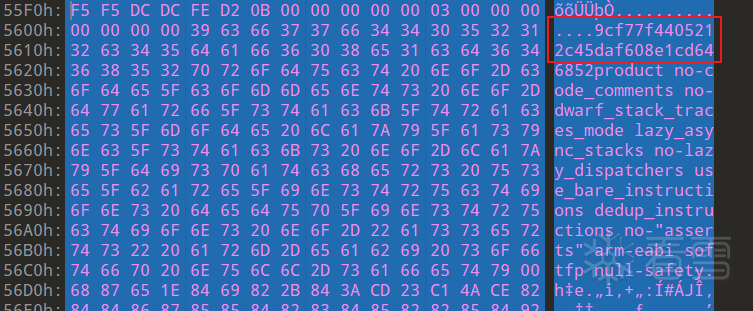

version_hash = snapshot_stream.read(32).decode('UTF-8')
features = snapshot_stream.read(64+64+32+11).decode('UTF-8')
print(version_hash)
print(features)
9cf77f4405212c45daf608e1cd646852
product no-code_comments no-dwarf_stack_traces_mode lazy_async_stacks no-lazy_dispatchers use_bare_instructions dedup_instructions no-"asserts" arm-eabi softfp null-safety
vsersion_hash和flutter版本的对照表
2.8.0-3.1.pre,09f1520e8b9585d133faf1eccced9357670c6d11,adf563436d12ba0d50ea5beb7f3be1bb
2.7.0-3.0.pre,bbba2b2437d739a455ecafb66a22a46d31b233ed,24d9d411c2f90c8fbe8907f99e89d4b0
2.6.0-5.2.pre,1d521d89d8d98f27be4e0ff84d5c6b72dbdc91ca,f10776149bf76be288def3c2ca73bdc1
2.5.0,f0826da7ef2d301eb8f4ead91aaf026aa2b52881,9cf77f4405212c45daf608e1cd646852
2.4.0,844c29f42a614420b2205c178f22d30b43a8b0bb,659a72e41e3276e882709901c27de33d
2.3.0,9d517f475ba1282b619477bde8e708d6a34287cf,7a5b240780941844bae88eca5dbaa7b8
2.2.0,a9d88a4d182bdae23e3a4989abfb7ea25954aad1,e4a09dbf2bb120fe4674e0576617a0dc
2.2.0-10.1.pre,d2a2e93510ad6cfc3d62a90d903b7056e4da8264,34f6eec64e9371856eaaa278ccf56538
2.1.0-12.2.pre,711ab3fda05004ee5f6035f2a0bf099fca39a129,39a9141bbcc3cae43e6f9f6b7fbaafe3
2.0.6,05e680e202af9a92461070cb2d9982acad46c83c,5b97292b25f0a715613b7a28e0734f77
1.25.0-8.3.pre,7a8f8ca02c276dce02f8dd42a44e776ac03fa9bc,9e2165577cef0f0f70f9ff072107920c
1.24.0-10.2.pre,07c1eed46b9d9b58df78566e9b8b2e42e80d3380,a2bdb58c7edf9471da9180bf8185e7f7
1.23.0-18.1.pre,1d12d82d9cb54876f58044aa52198d53ec841c3d,953aa80d78c4d8886e3e4d784fd9d95f
1.22.6,2f0af3715217a0c2ada72c717d4ed9178d68f6ed,8ee4ef7a67df9845fba331734198a953
1.21.0-9.2.pre,20a953183580250aac2e15d36007664118bda5ab,5f40b0a9f04b5018fa08a9b67fd316cd
1.20.4,d1bc06f032f9d6c148ea6b96b48261d6f545004f,04645b6182fad3d68350d84669869ce5
1.20.0-7.2.pre,60b269d898cbe0be27e9b9ba9d21eae97b887ab6,8b2ca977d1d2920b9839d1b60eade6a7
1.19.0-4.3.pre,9a28c3bcf40ce64fee61e807ee3e1395fd6bd954,59da07d9da5a83be4ce75b7913b63dbd
1.18.0-11.1.pre,ef9215ceb2884ddf520d321bcd822d1461330876,b58ead73b2c5dfec69565df469bba387
1.17.5,ee76268252c22f5c11e82a7b87423ca3982e51a7,be7d304ff826e2dfac63538e227c3cc5
1.17.1,6bc433c6b6b5b98dcf4cc11aff31cdee90849f32,74edb834fac3fcea79d7ac2d1d6f1fb2
1.17.0-dev.3.1,c9506cb8e93e5e8879152ff5c948b175abb5b997,9e7cb7c9394c24c2398410b902673e13
v1.15.17,5aff3119480996ca014ec0f8d26d74db617b5852,ee91a9191a5286c31d91a89754ba36af
v1.14.6,c4229bfbbae455ad69c967be19aee3fadd6486e1,e739779cc1d28f0f697a92f2daf5f10f
v1.13.6,bdc9708d235e582483d299642ad8682826ebb90d,81662522448cdd4d02eb060669e5d48b
v1.12.13+hotfix.9,af51afceb8886cc11e25047523c4e0c7e1f5d408,20e5c4f7dc44368ac5a17643b93665f6
v1.11.0,af04338413c3ed73316350f64248a152433073b6,2fb364d659ea53f7892be9ba5e036047
v1.10.7,9e6314d348f9b5521e3c66856324d7a9c4a928c9,c3bbfe8f226120ad0569d7b78ed2d9ef
v1.9.1+hotfix.6,b863200c37df4ed378042de11c4e9ff34e4e58c9,c8562f0ee0ebc38ba217c7955956d1cb
v1.8.3,38ac5f30a7026e870619c2e8e8c99c070d74036f,34948253b59d5a56b2ec161e17975a4e
v1.7.8+hotfix.4,fee001c93f25a1e7258e762781a7361f122d29f5,1d7acad1540192ac459cf60344efb7c1
v1.6.3,8dc3a4cde2075a4f5458fd0eb199627f5124508d,c89592e3e4956c33956c8ba0f691dbd0
v1.5.4-hotfix.2,52c7a1e849a170be4b2b2fe34142ca2c0a6fea1f,eed485c757fba5d731e4054412c99f2e
v1.4.9-hotfix.1,4737fc5cd89b8f0136e927b00f2e159444b95a73,f630ecdf457e27dd24d3b9e0a6bc1c13
v1.3.8,f4951df193a7966f9ed4da43d555eee0913d84d1,9a66dcb2da955dffdbdb0eafa0288784
v1.2.1,3757390fa4b00d2d261bfdf5182d2e87c9113ff9,0c73eb70aa4d30f450273cb424be8c62
v1.1.8,7112b72cc229e05d36716c3d7739885d3ffa72e6,317d4c7e607b1fd7d682c0010aadf1d0
v1.0.0,7375a0f414bde4bc941e623482221db2fc8c4ab5,8343f188ada07642f47c56e518f1307c
